Δορυφορικός και Επίγειος Δέκτης ΑΜIKΟ 9265+ 4K

Ο νέος Amiko 9265+ είναι ένας Full HD Combo δέκτης με υποστήριξη αποκωδικοποίησης 4K/HEVC και δυνατότητα αναπαραγωγής OTT περιεχομένου. Έχει ενσωματωμένες διαδικτυακές εφαρμογές, ενώ μπορεί να υποστηρίξει και ασύρματη σύνδεση στο internet. Με λογικό κόστος, απλό και εύχρηστο μενού, είναι κατάλληλος για χρήση από εκείνους που επιθυμούν έναν οικονομικό δέκτη για να λαμβάνουν ταυτόχρονα επίγεια και δορυφορικά κανάλια.

Τεχνικά χαρακτηριστικά:

• Tuner & Demodulation
• Tuner Type: DVB-S / DVB-S2
• Input Connector: F-type, Connector, Female
• Signal Level: -65 to -25 dBm
• LNB Power & Polarization: Vertical: +13V/+14V, Horizontal: +18V/+19V
• Current: Max. 400mA (Overload Protection)
• 22KHz Tone Frequency: 22±1KHz
• DiSEqC Control: Version 1.0, 1.1, 1.2, USALS
• Demodulation: QPSK, 8PSK
• Input Symbol Rate: 2-45 Mbps,
• FEC: 1/2, 2/3, 3/4, 5/6, 7/8 and Auto
• Tuner Type: DVB-T2 / DVB-C
• Frequency Range: 48~862MHz
• RF Input Level: -80dBm to -20dBm
• Antenna power output: DC 5V at max 75mA, Overload protection
• Demodulation: COFDM 1K, 2K, 4K, 8K normal and extended, 16K normal and extended, 32K normal and extended
• Input Symbol Rate: 1.0 ~ 7.0Ms/s
• Constellations: QPSK, 16QAM, 64QAM, 256QAM / Both rotated and non-rotated
• Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
• Code Rate: 1/2, 3/5, 2/3, 3/4, 5/6
• MPEG TS A/V Decoding
• Transport Stream: MPEG-2, H.264, H.265,
• Input Rate: Max.120Mbit/s
• Aspect Radio: 4:3, 16:9, Letter Box
• Video Decoding: UHD 4K x 2K, HEVC/H.265,MPEG-4/H.264, SP@L3 to ASP@L5, AVC, HP@level 4.1, MP@level 4.1
• Video Resolution: 720*480p/i, 720*576p/i,1280*720p, 1920*1080p/i, 3840 *2160p
• Audio Decoding: MPEG-1/2,AAC-LC,HE-AAC,MP3,Dolby Digital
• Audio Mode: Left / Right / Stereo/ Mono
• Sampling Rate: 32, 44.1 and 48KHz System Resources
• Main Processor: Quad core 1.4GHz
• Flash Memory: 8MB
• RAM: DDRIII 16bit 2Gbx2
• Power Supply
• Input Voltage: 12VDC
• Power Consumption: 24W Max
• Stand-By Power Consumption: <0.5W

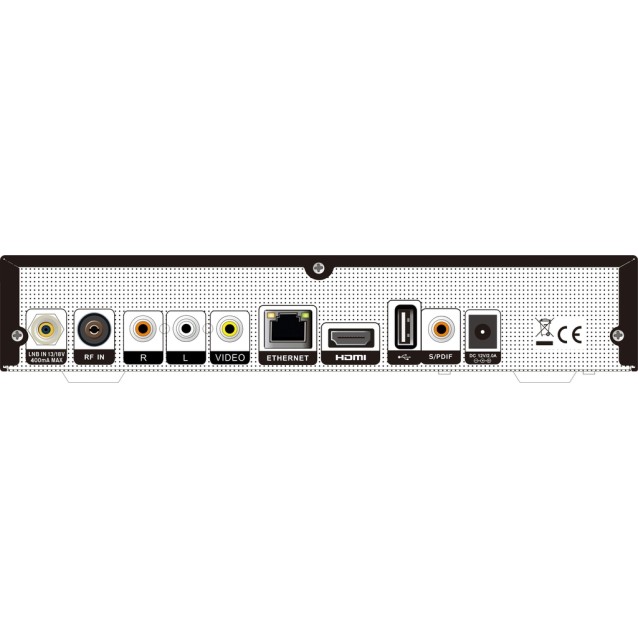

• A/V & Data Input/Output
• RCA: CVBS Video out, L&R Audio out
• USB: Two USB 2.0 slots
• S/PDIF: Coaxial Digital Audio or Dolby Digital Bit Stream Output
• Digital Video Output
• Ethernet: 10/100M RJ45
• Physical Specifications
• Size: Size: 220mm*40mm*160mm
• Net Weight: 1.0KG
• Operation Temperature: 0°C~+45°C
• Storage Temperature: -10°C~+70°C
• Storage Humidity: 5%~95% RH (Non-Condensing)
• Channel Recording & Timeshifting Simulteniously (optional)
• Channel switching time less than 1 second
• True-color, User Friendly On-Screen Display (OSD)
• Full Picture In Graphic (PIG) function
• Electronic Program Guide (EPG)
• Subtitle supported
• Teletext supported with VBI insertion
• Parental lock facility by channel and program event
• Program and Channel information transfer from receiver to receiver
• Satellite Blind Scan & Fast Scansupport
• DiSEqC 1.0, 1.1, 1.2 and USALS Compatible
• Full HD (1080p) Output via Digital Video Output
• Exciting games embedded
• Multi-Language support
• Software upgrade support via USB, Network, OTA,
• Power Consumption in Stand-By: <0.5W
