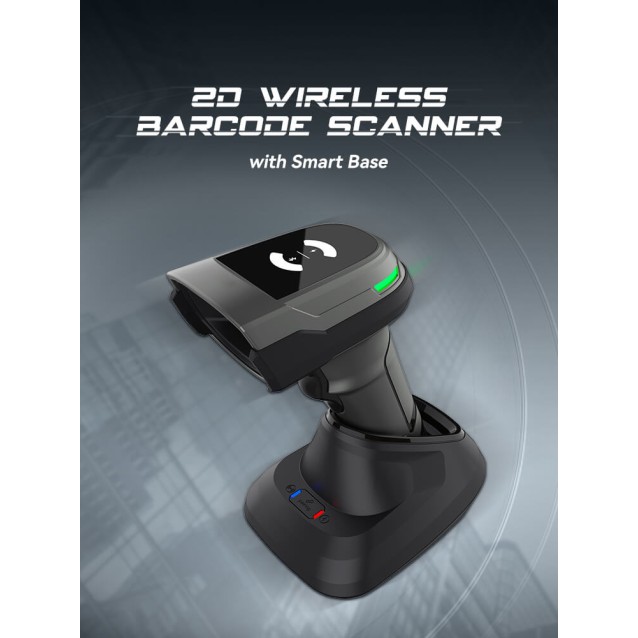

NG BAR-2405 ΑΣΥΡΜΑΤΟ BARCODE SCANNER, 2D, 2.4+ΒΤ, 2200 mAh

Performance Parameters

Light Sources:

 (Aimer)RED color LED, (illumination)White color LED

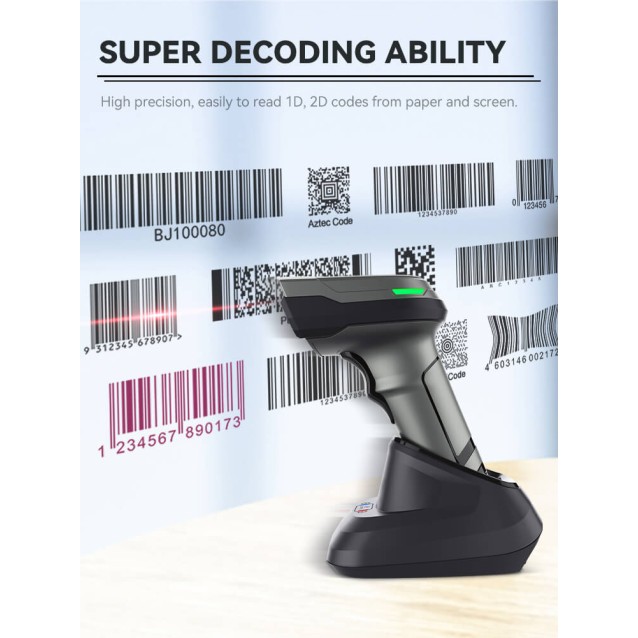

Supported Symbologies

1D: Codabar, Code 39, Code 32 Pharmaceutical(PARAF), Interleaved 2 of 5,NEC 2 of 5, Code 93, Straight 2 of 5 Industrial, Straight 2 of 5 IATA,Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E, EAN/JAN-8,EAN/JAN-13, MSI, GS1 DataBar Omnidirectional, GS1 DataBar Limited,GS1 DataBar Expanded, China Post(Hong Kong 2 of 5), Korea Pos.
2D: Codeblock A, Codeblock F, PDF417, Micro PDF417, GS1 Composite Codes, QR Code, Data Matrix, MaxiCode, Aztec, HANXIN.

Scanning Principle:

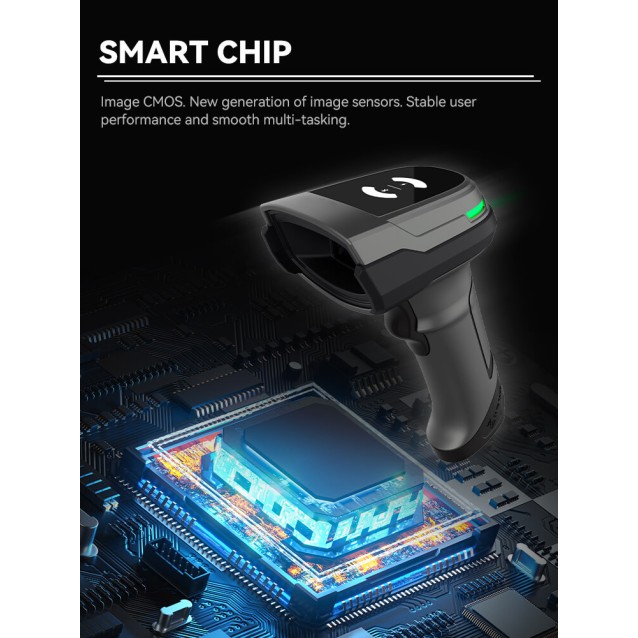

Image CMOS

Image (Pixels)

640pixels (H) x 480 pixels (V)

Scan Angle:

Yaw±65°, Rotation 360°,Pitch±65°

Print Contrast:

20%

Depth of scan field:

Code39(5mil): 7-16cm, Code39(13mil): 7-32cm

QR code (15mil): 3-18cm, Codel28(20mil): 6-35cm

Error Rate:

1/5million

Interface:

USB-HID, USB-COM

Transmission distance:

100M(Open Yard)

Communication mode:

Paired dedicated receiver: 2.4G

Paired mobile Bluetooth devices: Dual-mode Bluetooth

Storage mode:

Offline storage mode: When the scanner leaves the connection range,the data is automatically stored. Storage capacity is 200K characters.

Inventory storage mode: The scanner can enter inventory mode,with a storage capacity of 200K characters.

Pairing Mode:

One to One: One Scanner Pairs One Receiver,
One scanner paired with a Bluetooth mobile device

Receiving end:

Dedicated Bluetooth U disk receiver, Android/IOS mobile device

Physical  Parameters

Dimensions

83.5mm*65.7mm*174.8mm

Material

ABS+PC

Cable Length

1 M

Environmental Parameters

Operating Temperature

-20℃ ~50℃

Storage Temperature

-40℃~70℃

Relative Humidity

5%~95% RH（Non-condensing）

Ambient lighting

0~100000LUX

Shock Resistance:

Withstands multiple times 1.5 meters drops to concrete

Electronic Parameters

Working Voltage

DC5V±5%

Operating Current

 Standby Current ≥35 mA. Working Current ≥300mA

Standby Current

OmA(Standby is to cut off battery power)

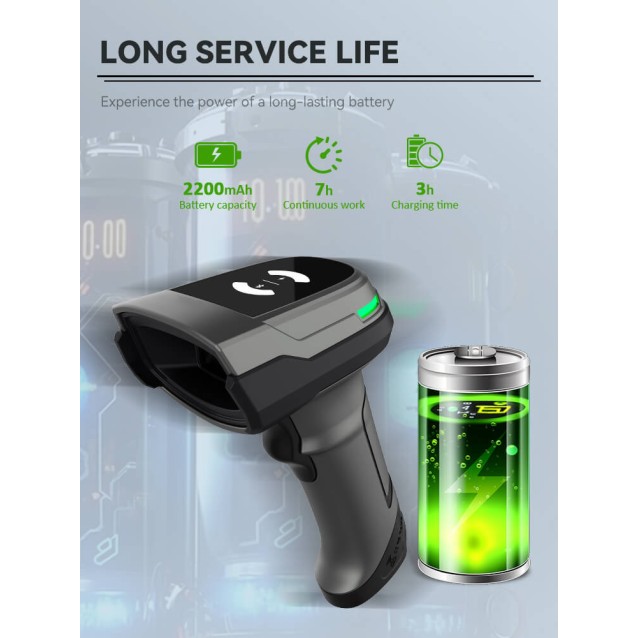

Battery Working Time:

7H

Lithium battery:

2200mA

Charging Time:

3H

Charging Mode:

Type C charging cable, plug in and charge directly
