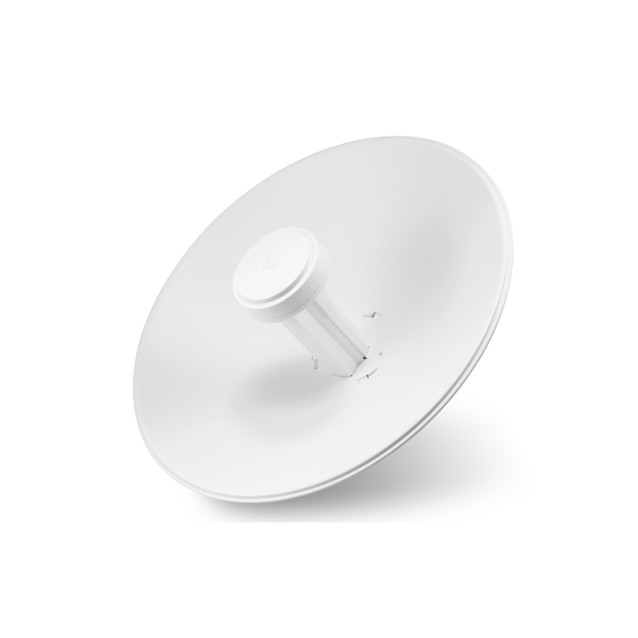

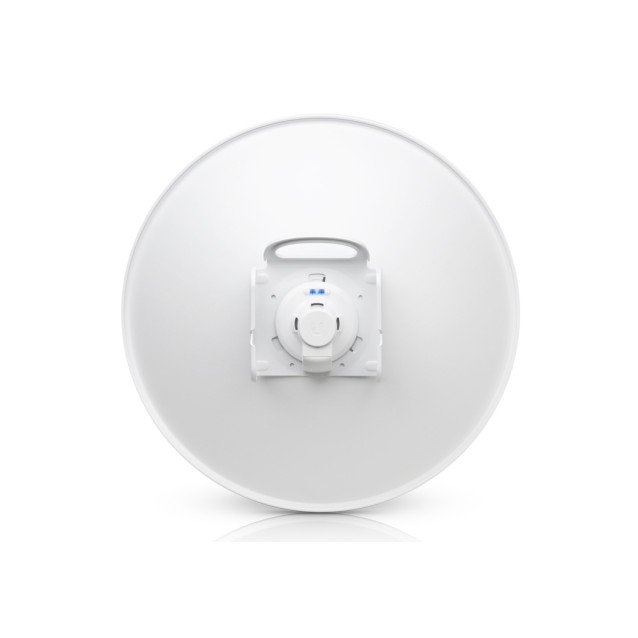

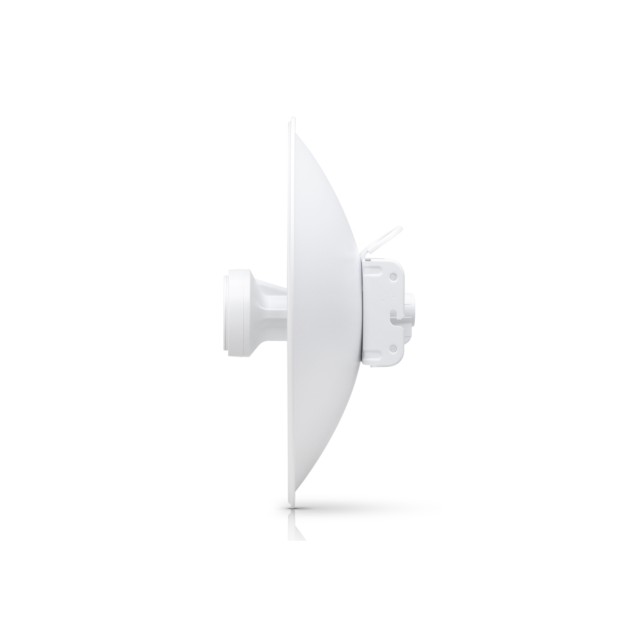

UBIQUITI Access point PBE-M2-400, outdoor, 2.4GHz, 2x18dBi, AirMAX
- Κατασκευαστής: UBIQUITI
- Κωδικός Προϊόντος: PBE-M2-400
Τεχνικά Χαρακτηριστικά:
Power Supply: 24V, 0.5A PoE
Max. Power Consumption: 6W
Gain: 18 dBi
Networking Interface: (1) 10/100 Ethernet Port
Processor Specs: Atheros MIPS 74Kc, 560 MHz
Memory: 64 MB DDR2, 8 MB Flash
LEDs: 1x Power, 1x LAN, 4x WLAN
Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels
Max. VSWR: 1.5:1
Channel Sizes: 5/8/10/20/30/40 MHz
Polarization: Dual Linear
Enclosure: Outdoor UV Stabilized Plastic
Mounting: Pole-Mount (Kit Included)
Wind Loading: 278.4 N @ 120 km/h
Wind Survivability: 120 km/h
ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature: -40 to 70° C
Operating Humidity: 5 to 95% Non-Condensing
Wireless Approvals: FCC, IC, CE
RoHS Compliance: Yes
Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test: IEC 68-2-6
Temperature Shock Test: IEC 68-2-14
UV Test: IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
Dimensions: 420 x 420 x 289 mm
Weight: 1.795 kg

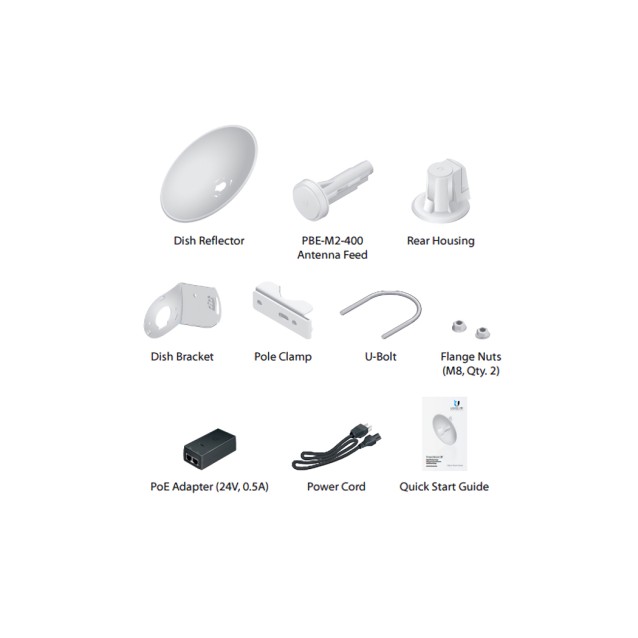

Περιεχόμενα συσκευασίας
Dish Reflector
PBE-M2-400 Antenna feed
Rear housing
Dish bracket
Pole Clamp
U-Bolt
2x Flange nuts M8
PoE adapter (24V, 0.5A) with mounting bracket
Power cord
Quick start guide
ΔΙΑΘΕΣΙΜΟ
